Introduction

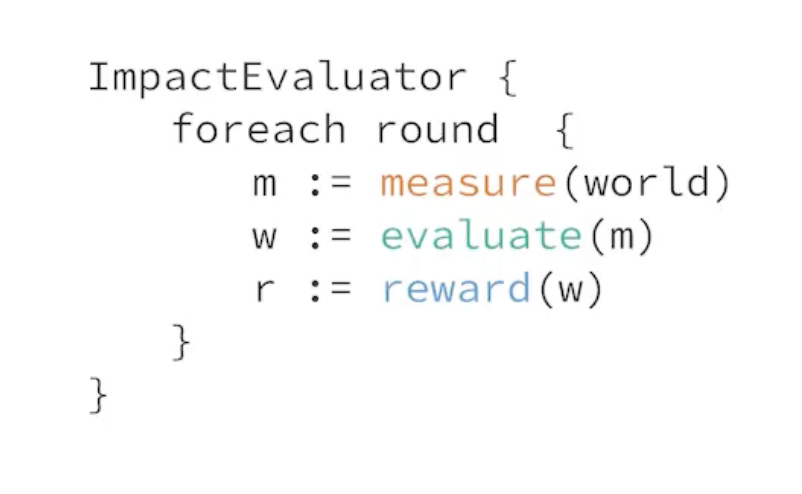

MERidian stands for Measure, Evaluate, Reward, the three steps of the impact evaluator framework. The Meridian project aims to create an impact evaluator for “off-chain” networks. I.e. a network of nodes that do not maintain a shared ledger or blockchain of transactions.

This doc proposes a framework and model for Meridian that will cater initially for both the Saturn payouts system and the SPARK Station module. For a bonus point, it should be able to cater for any Station module. We believe that trying to generalise beyond these few use cases at this point may be counterproductive.

We will structure this design doc based on the three steps of an Impact Evaluator (IE), measure, evaluate and reward.

Challenges for this Meridian design document

There needs to be a smart contract that acts as the central entity for the impact evaluator. It is the one that runs the epoch loop and orchestrates the work, then performed by either other smart contracts or centralized services. Its mode of operation should be modelled close to the block reward mechanism.

The orchestrator smart contract should:

• receive funds

• control epochs

• trigger collecting measurements

• trigger the evaluation

• trigger the payout of reward

Tasking and measurement

Depending on whether tasking is seen as part of measure, it could stay in the centralized orchestrator (for now), and at a later point be moved to the IE smart contract. This document is going to chart both paths:

• IE smart contract without tasking

• IE smart contract with tasking

Quoting :

imo if tasking is independent of rewards, then tasking should not be part of the IE

However, for SPARK seems like there should be a mechanism for station operators to verify that the tasking was indeed done equally amongst all nodes.

Overview

TODO:

• I've removed membership from this contract, as it can be deducted from the measures submitted. Is that ok?
  • Pros
    • Simpler
    • Less gas
    • Tasking doesn't need memberships here

  • Cons
    • No explicit membership management

• Both the measure service and random peers need to be able to submit measures. What is a way of addressing measures that works for both?
  • Idea: Submit CID with optional peer address (or set thereof). Then use frisbii+lassie for data transfer. Its the peer’s responsibility to ensure data is retrievable when measurements are being aggregated over. If measures aren’t included, we can’t prove it’s the peer’s fault 🤔

  • Another idea: Only let the measurement service submit commitments, if peers want to submit directly they need to submit the raw log. That for sure doesn’t scale however.

• Refactor using events

contract {
	roundPeriod numBlocks
	currentRound int

  reserve amountFIL

	rounds []struct{
		measures []measure
	  scores map[address]score
	}

  evaluators []address
}

maybeAdvanceRound () {
  // TODO: Define round logic. Base on tipset?
  if condition {
    currRound++
  }
}

// Don't want to monopolize measure service, therefore:
// - can be sent by anyone
// - can happen multiple times
addMeasurement (measures CID) {
  rounds[this.currentRound].measures.push(measures)
  maybeAdvanceRound()
}

// TODO: must only happen once, or require same result by all evaluators? What to do on conflict
setScores (round int, scores map[address]score) {
  assert(sender in this.evaluators)
  assert(round == this.currRound - 1)
  assert(this.rounds[round].scores == nil)
  this.rounds[round].scores = scores
  reward(round, scores)
}

private reward (round int) {
  # TODO
}

public getCurrentRound () int {
  return this.currentRound
}

public getCurrentRoundMeasures () []measure {
  return this.rounds[this.currentRound].measures
}


runIE()
	#

sequenceDiagram
  autonumber
  participant C as Client
  participant I as Contract: IE
  participant P as Peer
  participant T as Service: Tasker
  participant M as Service: Measure
  participant E as Service: Evaluate
  participant R as Contracts: Reward
  loop Funding
		C->>I: Fund work
  end
  loop Work
    T->>P: Assign task
    P->>P: Perform work
		P->>M: Upload logs
	  M->>M: Store logs
  end
  loop Impact Evaluator
    par Measure
      M->>M: Wait 1 minute
      M->>M: Fetch uncommitted logs
	    M->>M: Create merkle proof
	    M->>I: Call `addMeasurement(commitment)`
      I->>I: Maybe advance round
    and Evaluate I: Data preprocessing
      E->>I: Call `getCurrentRoundMeasures()`
      E->>M: Fetch logs for unknown commitments
      E->>E: Detect fraud
      E->>E: Aggregate
      E->>E: Store aggregates
    and Evaluate II
      E->>I: Call `getCurrentRound()`
      E->>E: Skip if known round
      E->>E: Fetch aggregates from prev. round
      E->>E: Calculate reward shares
      E->>I: call `setScores(round, scores)`
    and Reward
      I->>R: Call payments factory
	    R->>R: Create payment splitters
	  end
    P->>R: Claim FIL
  end


Use of centralized services

We have chosen to start the Meridian design supported by a minimal set of centralized and trusted services (previously called orchestrator). See for an exploration of alternatives.

A fully trustless model is to be developed as a very next step, because it brings important benefits for a rewards system:

• Trustless: There are no hidden parts of the system. All computation can be inspected by all peers.

• Safe: No party is responsible / liable for running the system

However, only using smart contracts poses unsolved design challenges:

• How to avoid high gas cost due to frequent contract invocation (O(n) vs O(1) when using a service that aggregates and then commits)

• How to store and work on large amounts of data

Store & commit

A pattern in the system is for centralized components to both store their results in a centralized database, and commit a proof of their results to the decentralized blockchain (through smart contracts).

This enables other services to consume the raw results produced, to implement further operations. This also adds verifiability, which is a crucial aspect of reward systems. Peers shouldn’t have to trust the system’s operators.

For example, here is how the measure service passes data on to the evaluate service, while publishing commitments on chain:

flowchart
  M[Measure Service] --raw results--> MDB[Measure DB]
  M --commitment--> MC[Measure Contract]
  MDB --raw results--> E[Evaluate Service]
  E --commitment--> EC[Evaluate Contract]
  E --raw results--> EDB[Evaluate DB]

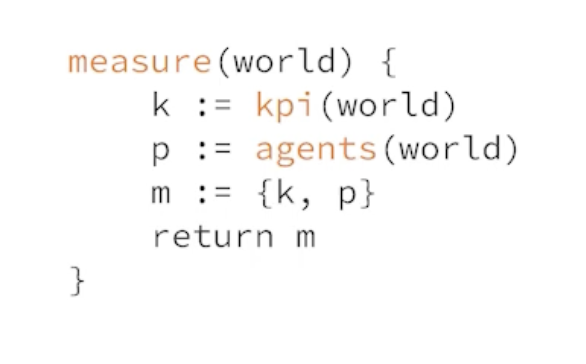

Measure

In the measure step, we refer to each atomic item that gets measured as a job. For example, each retrieval served by a Saturn node is a job. For Spark, each retrieval made from an SP is a job.

This step is implemented using 3 components:

• A centralized measure service

• A centralized measure database

• A measure smart contract

Peers periodically submit measurements (job logs) to the measure service, which stores them raw in its database, for future consumption by the evaluate pipeline.

The measure service will also periodically create Merkle trees of all measurements received (since the last proof). The root hash is published to the chain, the full tree is stored in the database. This allows peers to verify that their job logs have been included, taking steps towards a fully trustless model.

sequenceDiagram
  autonumber
  participant P as Peer
  participant S as Service: Measure
  participant D as DB: Measure
  participant C as Contract: Measure
  loop Store
	  P->>S: Upload measurements
	  S->>D: Store measurements
  end
  loop Commit
	  D->>S: Fetch measurements
	  S->>S: Create Merkle tree
    S->>D: Store Merkle tree
	  S->>C: Call with Merkle root hash
	  C->>C: Emit hash
  end

Proof of Inclusion

Meridian implementers can create a verification service, which lets peers verify inclusion by exposing the relevant nodes of the matching merkle tree.

sequenceDiagram
  participant P as Peer
  participant S as Service: Verify
  participant D as Database: Measure
  P->>S: submit log hash, merkle root hash
  S->>D: fetch merkle tree
  S->>P: return relevant nodes

See also:

• Having a safe CEX: proof of solvency and beyond

Data Model

Job logs

Job logs are periodically submitted by the peer to the measure service. This raw log of work done is the basis for the whole Meridian pipeline.

[
	// Generalized record
	{
	    "job_id": "<UUID or CID>",     // Unique job id
	    "peer_id": "<Libp2p Peer ID>", // Who completed the job
	    "started_at": "Timestamp",     // When did the job begin
	    "ended_at": "Timestamp",       // When did the job end
	    // Any other fields that are useful measurements of work done
	}

	// Example Saturn record
	{
	    "job_id": "abcdef",
	    "peer_id": "<Libp2p Peer ID>",
	    "started_at": "2023-05-01 00:52:57.62+00",
	    "ended_at": "2023-05-01 00:52:58.62+00",
	    "num_bytes_sent": 240,
	    "request_duration_sec": 10,
	    "ttfb_ms": 35,
	    "status_code": 200,
	    "cache_hit": true
	}

	// Example SPARK record
	{
	    "job_id": "abcdef",
	    "peer_id": "<Libp2p Peer ID>",
	    "started_at": "2023-05-01 00:52:57.62+00",
	    "ended_at": "2023-05-01 00:52:58.62+00",
	    "status_code": 200,
	    "signature_chain": "<signature chain>",
	    "num_bytes": 200,
	    "ttfb_ms": 45
	}
]

On-chain commitment

Periodically, the measure service submits a commitment of work received to the chain, via the measure smart contract. After creating and storing a merkle tree over the logs, the root hash is published together with the measurement epoch.

{
  "root": "<merkle root hash>",
  "started_at": "2023-05-01 00:52:57.62+00",
  "ended_at": "2023-05-01 00:52:57.62+00"
}

Implementation

Evaluate

At this point we have a table of logs in the above data model, stored in an off-chain data store. The next step is to evaluate over the logs from the current measurement epoch, using the evaluation function.

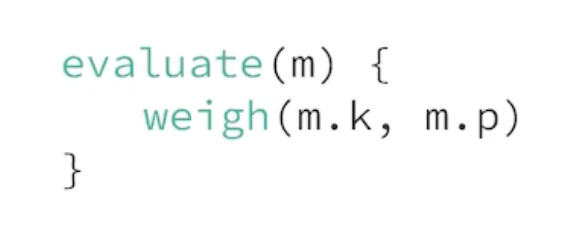

Evaluation Function

In general, for $t$ evaluation fields, for node $i$ where $1 <= i <= n$, and with logs $l_{i,1},...,l_{i,j},...l_{i,m_i}$ and evaluations on those logs $x_{l_{i,1},1},...,x_{l_{i,1},t},..., x_{l_{i,m_i},1},...,x_{l_{i,m_i},t}$ and evaluation function $f$, we can calculate the evaluation output as

where $y = (y_1,... y_n)$ and $y_k$$y_i$ is the evaluation of node $k$.

In the case of Saturn, the evaluation function is a function of number of bytes sent, TTFB and the request duration. This is calculated by the Saturn payouts system.

In the case of Spark, the evaluation function is simply a count of the number of successful requests with valid signature chains a Station has performed. Specifically, for node $k$,

where $\delta_{ij} = 1$ if the log with index $j$ of node $i$ is valid and $0$ otherwise.

The Saturn evaluation function is more complicated . See https://hackmd.io/@cryptoecon/saturn-aliens/%2FMqxcRhVdSi2txAKW7pCh5Q for more details.

Multi stage evaluation

In Meridian, evaluation is a 2 stage process. Evaluation stage i is a data preprocessing pipeline, that periodically pre-filters and aggregates measurement results. This smaller dataset is then consumed by evaluation stage ii, which is executed once before the rewards phase.

The 2 stage design is one of the lessons from the Saturn project: Data needs to be aggregated and pre-filtered, as otherwise e.g. a once-a-month evaluation run will operate over too large a dataset and pose serious scaling issues.

Conveniently, fraud detection is also a 2 stage process, and each evaluation stage comes with one fraud detection stage.

Evaluation Stage I: Data preprocessing

The data preprocessing pipeline is executed whenever the measure service has committed an inclusion proof on chain. It takes the raw logs from associated measurement epoch, performs its preprocessing steps, and finally stores & commits.

sequenceDiagram
  autonumber
  participant E as Service: Evaluate Stage I
  participant DM as Database: Measure
  participant DE as Database: Evaluate
  participant C as Chain
  DM->>E: Fetch logs
  E->>E: Detect fraud
  E->>E: Aggregate
  E->>DE: Store aggregates in buckets Honest/Fraudulent
  E->>C: Publish proof

Fraud Detection

Based on the network-specific fraud detection function, raw job logs are aggregated into two buckets:

• Honest logs: Logs used for later processing in evaluation stage ii and reward

• Fraudulent logs: Logs kept for reference

The fraud detection function maps an individual log line to boolean fraudulent status:

flowchart TD
  subgraph Logs
	  L1[Log]
	  L2[Log]
	  L3[Log]
  end
  subgraph Buckets
    BH[Honest logs]
    BF[Fraudulent logs]
  end
  Logs--detect fraud-->Buckets
  L1[Log] --> BH
  L2[Log] --> BH
  L3[Log] --> BF

For SPARK for example, the fraud detection function verifies a log’s UCAN signature chain. If the signature chain holds, the log line will be aggregated into Honest logs, otherwise Fraudulent logs.

Aggregation

Logs from both buckets will be aggregated, and those aggregations stored in a database. A merged aggregate will be committed on chain.

However, only logs from the Honest logs bucket will count when evaluation stage ii determines the peer’s impact on the system.

flowchart TD
  subgraph Buckets
    BH[Honest logs]
    BF[Fraudulent logs]
  end
  subgraph Aggregates
    AH[Honest logs]
    AF[Fraudulent logs]
  end
  subgraph Database
    TH[Honest logs]
    TF[Fraudulent logs]
  end
  BH --> AH
  BF --> AF
  AH --> TH
  AF --> TF
  AH --> Merge
  AF --> Merge
  Merge --> Commitment

On-chain commitment

The on-chain commitment contains aggregated measurements from both buckets Honest logs and Fraudulent logs, in order to commit to a sum of work done. No further details about fraud detection results are leaked, to prevent gaming the system.

// General commitment shape
{
  // The .root hash of the measurement commitment that was aggregated over
  "measurement_root": "<merkle root hash>",
  "started_at": "2023-05-01 00:52:57.62+00",
  "ended_at": "2023-05-01 00:52:57.62+00",
  "measurements": {
    "honest": {
      "log_count": 1000,
      // Any properties that need to be fed to the evaluation function,
      // aggregated
    },
    "fraudulent": {
      // Same shape as above
    }
  }
}

// Example Saturn commitment
{
  "measurement_root": "<merkle root hash>",
  "started_at": "2023-05-01 00:52:57.62+00",
  "ended_at": "2023-05-01 00:52:57.62+00",
  "measurements": {
    "honest": {
      "log_count": 13,
      "num_bytes": 1000
    },
    "fraudulent": {
      "log_count": 2000,
      "num_bytes": 100
    }
  }
}

// Example SPARK commitment
{
  "measurement_root": "<merkle root hash>",
  "started_at": "2023-05-01 00:52:57.62+00",
  "ended_at": "2023-05-01 00:52:57.62+00",
  "measurements": {
    "honest": {
      "log_count": 13,
      "num_bytes": 1000
    },
    "fraudulent": {
      "log_count": 2000,
      "num_bytes": 100
    }
  }
}

Proof

The attached measurement root lets peers verify that their log line was included in the aggregation. There is no further proof of which log line has counted towards the aggregation (or been ignored due to fraud) in order to prevent gaming the fraud detection function.

Fraud detection is a private process and therefore also no proof will be created for this function.

Evaluation Stage II

At the end of each payment epoch, the evaluate stage ii service converts preprocessed aggregated logs (from the Honest logs bucket) into evaluation results.

It also executes a 2nd round of fraud filtering.

It asks for human review before triggering the reward phase by calling the rewards factory contract with batches of evaluations.

sequenceDiagram
  autonumber
  participant E as Service: Evaluate Stage II
  participant DB as Database: Evaluate
  participant C as Contract: Rewards Factory
  DB->>E: Fetch Honest logs aggregates
  E->>E: Detect and discard fraud
  E->>E: Evaluate
  E->>E: Ask for human review
  E->>E: Create batches of evaluations
  loop For each batch
	  E->>C: Call with batch of evaluations
  end

The evaluation process runs off chain, because the dataset (all aggregated measurements produced by evaluation stage i) is too large to be handled by smart contracts.

In order for the rewards factory contract to be callable even with a large size of peers, the evaluate stage ii service needs to batch its calls into dynamically sized buckets, given known smart contract size limitations.

Fraud detection

Multiple processes can mark peers or logs as fraudulent, in between measure and evaluate. For example, the Saturn Orchestrator can mark a peer as fraudulent when it fakes its speed test results.

Therefore, all logs that are part of the Honest logs buckets but have later on been flagged as fraudulent (or associated with a peer that has been flagged) will not be fed into the evaluation function.

Proof

Proofing that the correct evaluation computation was run over the correct dataset, and that the right result was shared, is still a matter of research.

TODO : Add more details

Human Review

Should there be a problem in the previous steps (measure, evaluate phase i), their results have already been committed and can’t be adjusted any more (for this payment epoch).

At the end of evaluation stage ii data of following shape is committed on chain by calling the rewards factory contract.

{
  "started_at": "2023-05-01 00:52:57.62+00",
  "ended_at": "2023-05-01 00:52:57.62+00",
  "payees": [{
    "address": "f1...",
    "proportion": "0.4", // Fraction of the reward pool
    "fraud": "0.1"       // Fraction of fraudulent logs amont all of the
                         // payee's logs (which have been discarged)
  },{
    "address": "f1...",
    "proportion": "0.6",
    "fraud": "0"
  }],
}

I.e. for each epoch we know what proportion of the overall tokens will go to each node.

Reward

flowchart TD
  subgraph Service: Evaluate
	  b1[Batch of evaluations]
	  b2[Batch of evaluations]
  end
  b1--call-->F[Contract: Rewards Factory]
  F--deploy-->S[Contract: Payment Splitter<br />- f1aaa: 1FIL<br />- f1bbb: 2FIL<br />...]
  subgraph Peers
    p1[Peer: f1aaa]
    p2[Peer: f2aaa]
  end
  p1--claim-->S
  p2--claim-->S


Pull vs push payments

It is important for peers to claim (pull) their rewards, instead of for the system to send out (push) rewards, for multiple reasons:

• This gives peers the freedom to claim whenever they want (e.g. tax benefits), or not to claim at all

• This further decouples the system from the system’s operator, which helps with liabilities
